NEPEM电解水制氢用质子交换膜
NEPEM Proton exchange membrane for PEMWE

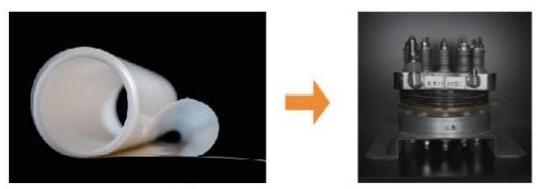

根据具体应用场景,公司的电解水制氢质子交换膜可分为应用 于工业制氢用途的11x系列质子交换膜和应用于氢健康领域的11x W 系列质子交换膜。NEPEM 电解水用质子交换膜具有电导率高、气 体渗透率低、耐高压等特点。
Accordingto specific application scenarios,ThinkreTM proton exchange
membrane for hydrogen production from electrolytic water can be divided into llx series proton exchangemembrane for industrial hydrogen production and llxW series proton exchange membrane for hydrogen health.Nepem proton exchange
membrane for electrolytic water hasthecharacteristics of high conductvity,low gas permeabllity and high pressure resistance.
1.厚度和克重性能Thickness and Basis Weight Properties
型号Membrane Type | 厚度Thicknesstmicrons)(um) | 克重Weight(g/m) |
N-115 | 125 | 246 |
N-117 | 175 | 345 |
N-1110 | 220 | 432 |
N-115W、N-116W、N-117W | 125、150、175 | 246、295、345 |
2.物理和其它性能Physical and Other Properties
物理性能Physicaland Other Properties | 技术指标Index Parameters | 测试方法TestMethod | |
拉伸测试Tensile Test(23℃,50%RH) | N-11系列 | N-11W系列 |
|
拉伸强度Tensile Strength(MPa) | ≥28 | ≥28 | GB/T 20042.3-2022 |
弹性模量Tensile Modulu(MPa) | ≥400 | ≥200 | GB/T 20042.3-2022 |
断裂伸长率Elongation atbreak(%) | ≥120 | ≥200 | GB/T 20042.3-2022 |
比重Specific Gravity | 1.97 | 1.98 | 一 |
其它性能Other Properties | 技术指标IndexParameters | 测试方法TestMethod | |
电 导 率 ²Conductivity(S/cm) | ≥0.100 | ≥0.100 | GB/T 20042.3-2022 |
酸容量Acid Capacity(meq/g) | 1.00±0.05 | 1.00±0.05 | GB/T 20042.3-2022 |
水中溶解氢含量 Dissolved Hydrogen Concentration (ppb,最大) |
|
1000 | THINKRE跟国外某品牌 N11系列性能基本一致 THINKRE,thepefomance of hydrogen production can be comparable to thatof foreign brands N11-series. |
3.溶胀性能Hydrolytic Propertie
溶胀性能Hydrolytic Properties | 技术指标Index Parameters | 测试方法Test Method | |
含水量⁵Water Content(9%) | 5.0±3.0 | 5.0±3.0 | GB/T 20042.3-2022 |
吸水率⁶WaterUptake(%) | 50.0±5.0 | 50.0±5.0 | GB/T 20042.3-2022 |
厚度溶胀率(23℃,50%RH)Thickness Change,9%increase |
| ||
23℃浸泡(%)water soaked at 23℃50%RH | ≤5 | ≤18 | GB/T 20042.3-2022 |
100℃浸泡(%)water soaked at 100℃50%RH | ≤15 | ≤30 | GB/T 20042.3-2022 |
线性溶胀率Linear expansion,(23℃,50%RH)9%increase |
| ||
23℃浸泡(%)water soaked at 23℃50%RH | ≤5 | ≤16 | GB/T 20042.3-2022 |
100°℃浸泡(%)water soaked at 100℃50%RH | ≤18 | ≤20 | GB/T 20042.3-2022 |
1膜测试前在23°C,50%M 环境下至少放置24h, 产氢量测试需要将膜在水中漫泡一夜后测试较为稳定。Measurementstakenwithmembanecondionedto22℃,50%RH.
²电导率测试是23°C.100%Rh 下进行。Conductivity measurements at23℃,100%RH. |
|
³酸容量测试是采用烧碱溶液等量滴定膜中的磺酸根总量,从而推算出膜的酸容量或者交换当量。Abasetitration | proceduremeasuresthequivalentsofsulfonicacidgroupin |
the polymerresin,and usesthe measurementtocalculate the acid capacityorequivalentweight of the membrane. |
|
4水中溶解氢含量是采用富氢水杯测试笔(即日本进口溶存水素计)检测产品生成水中的氢含量。这不是常规测试。Disolved | Hydrogen Concentation wasperformedusinga |
Hydrogen-rich watertetpen(ENH-1000Potable Disobedhydrogen Meterl,which wasbased onthe prindpleofoxidation reductionpotentialin thesolutiontocalculate the dissolved hydrogen concentration.
5膜在23°C.50%Rh环境下相对于干膜的含水量。Water contentofmembrane conditioned to23℃and 50%RH(dryweight basis).
6膜在100°C,水 煮h 后相对于干膜的吸水率。Wateruptakefromdrymembrane to conditionedin waterat 100℃for1 hour(dry weight basis)
