NEPEM-PIES全氟磺酸树脂分散液
NEPEM-PIES Perfluorosulfonic Acid lon Exchange Solution
NEPEM-PIES系列全氟磺酸离子交换溶液可用作制备燃料电池、电化学传感器等装置的质子交换膜电解质膜和CCM催化剂涂层； 也可用于全氟离子膜的修补工作。
The NEPEM-PIES series perfluorosulfonic acid ion exchange solution can be used as aproton exchange membrane electrolyte
membrane and a CCMcatalyst coating for preparingfuel cells,electrochemical sensors;it can also be used for the repair of perfluorinated ion membranes
溶液组分Typical components
全氟磺酸树脂分散液组成Soluion components | ||||
性能Properties | 5wt% | 10wt% | 15wt9% | 20wt% |
树脂含量Polymer Content(%) | 5.0±0.5 | 10.0±0.5 | 15.0±0.5 | 20.0±0.5 |
溶剂含量Dispersant Content(9%) | 95.0±0.5 | 90.0±0.5 | 85.0±0.5 | 80.0±0.5 |
比重Specific Gravity | 0.91-0.92 | 0.93-0.94 | 0.95-0.96 | 0.96-0.97 |
酸容量Acid Capacity(meq/g) | 1.00±0.05 | 1.00±0.05 | 1.00±0.05 | 1.00±0.05 |
交换当量exchange equivalent(g/mol) | 1000±50 | 1000±50 | 1000±50 | 1000±50 |
溶剂类型Dispersant Type | 水、醇混合物 Water andAlcohol miture | 水、醇混合物 Water and Acohodlmixture | 水、醇混合物 Water and Alcoholmibture | 水、醇混合物 Water and Alcoholmixture |
包装
NEPEM-PIES全氟离子交换溶液使用聚四氯乙烯塑料瓶包装。包装分为200ml、500ml、1L、20L,如需特别包装请订购时注明。
package

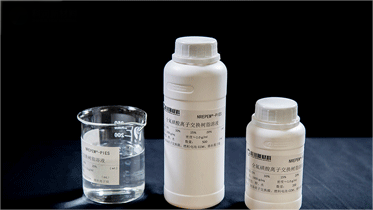

The NEPEM-PIES perfluorinated ion exchange solution is packaged in a Teflon plastic bottle
The package is divided into 200ml,500ml,1L,5L,20L.If you need special packaging,please specify when ordering
